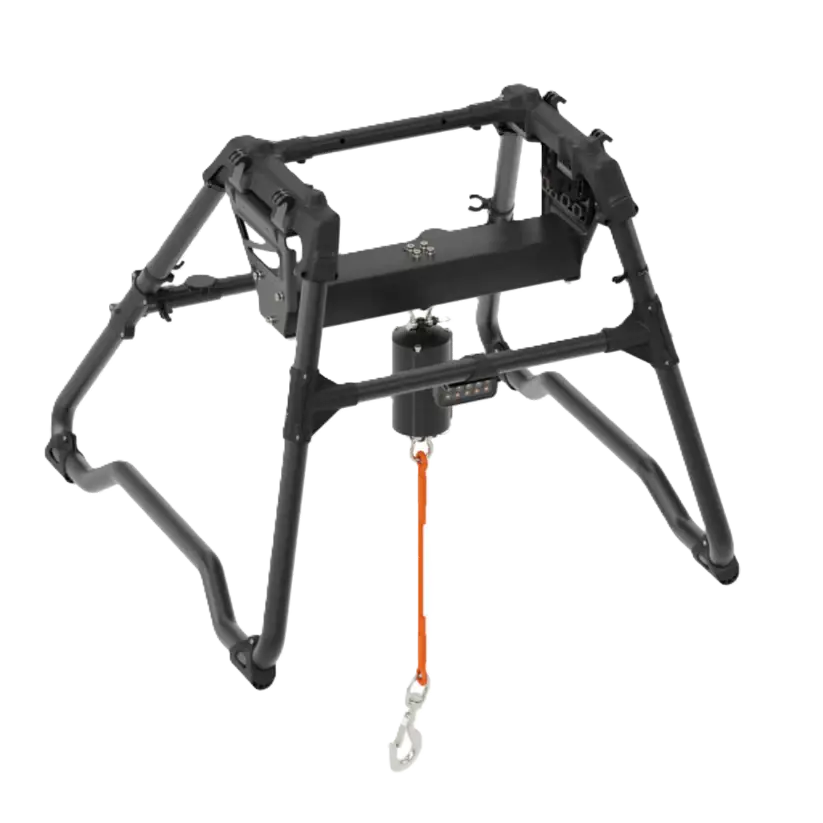

Agras T100 Lifting System

Description

The DJI Agras T100 Lifting System turns the T100 into a heavy-duty aerial transport tool for farms, estates, and difficult-to-reach work areas. With a 100 kg lifting capacity, it can move practical loads like saplings, fruit, fertiliser, and building materials where ground access is slow or inconvenient. For operations that need more than spraying and spreading, this is the upgrade that gives the T100 serious extra purpose.

Included items

• Standard lifting module
• 10 m lifting cable
• Hook assembly

Why it makes sense

Choose the T100 Lifting System when moving loads across rough, wet, steep, or hard-to-access ground is wasting time and labour. It helps the drone take on transport jobs that would otherwise need people, vehicles, or a much slower workaround.

• Carries loads up to 100 kg.
• Opens up farm transport work.
• Useful where vehicles struggle.
• Adds more value to the T100.

Important to know

• 100 kg lifting power for real farm logistics
  Move saplings, fruit, fertiliser, building materials, and other heavy loads by air when roads, slopes, mud, or distance make ground transport slow and frustrating.
• Smarter load guidance before take-off
  The DJI Agras app intelligently recommends a payload weight limit based on the aircraft’s current status and surroundings, helping operators avoid pushing the system beyond what is safe for that flight.
• Auto Balance Control helps steady swinging loads
  When cargo starts moving too much in the air, the system supports Auto Balance Control to help manage swing angle and keep lifting operations more controlled.
• Built-in weight awareness
  The Lift System includes a weight sensor calibration process, helping the aircraft read cargo weight correctly before operations begin. Small detail, big deal when you are moving serious loads.
• Plan pick-up and drop-off points more clearly
  In Agras Lift mode, operators can set loading and unloading points on the map, and the aircraft can fly directly to selected task points to make repeated lifting work more organised.

Specs

• Compatibility: DJI Agras T100
• Load capacity: 100 kg
• System dimensions: 805 × 764 × 669 mm
• Standard lifting cable length: 10 m
• Recommended cable length: 10–15 m
• Operating temperature: 0°C to 40°C
• Suitable cargo examples: Saplings, fruit, fertiliser, building materials
• Optional alternative: Dual Battery Lifting System with 80 kg load capacity, longer endurance support, and emergency fuse-disconnection escape function.

Works best with

• Best used as part of a properly matched aircraft and support setup.
• Choose the full setup around the mission, not around one isolated item.

Need pricing, availability, or the right setup? Open the quote form and we will get back to you with a tailored quote.
