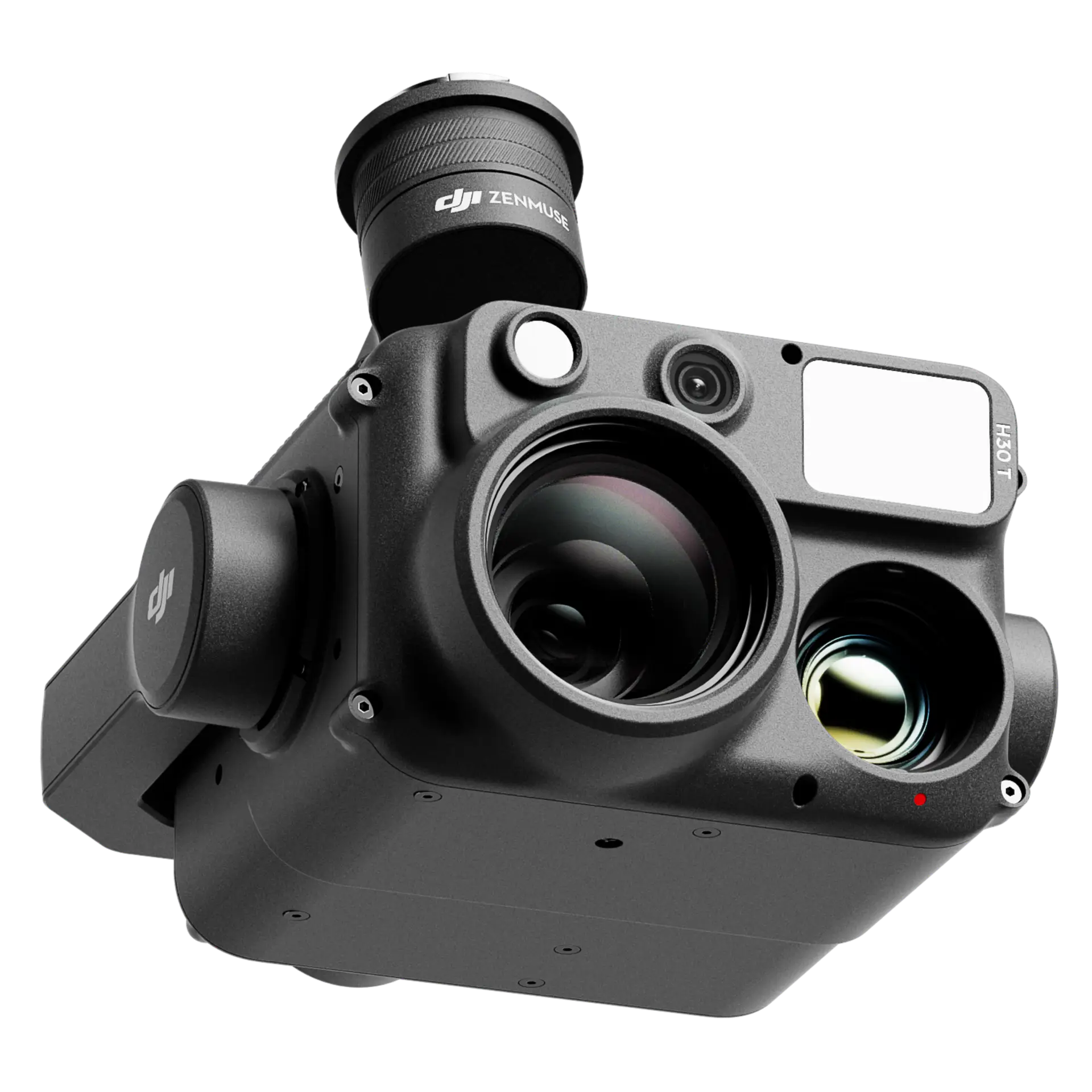

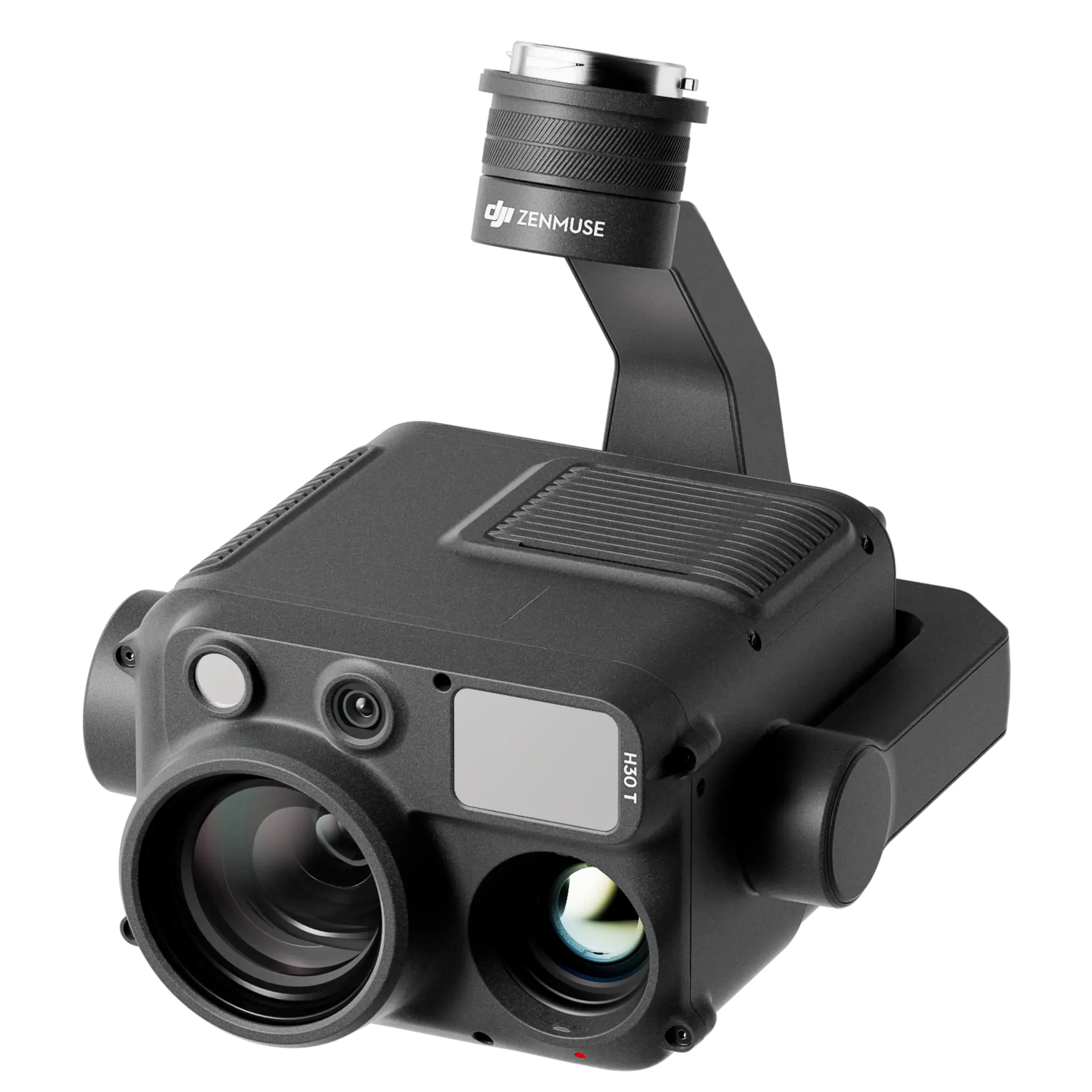

Zenmuse H30T

Description

The DJI Zenmuse H30T is the thermal version of the H30, built for teams that need to see heat, distance, and fine visual detail from one payload. It combines wide, zoom, thermal, laser rangefinding, and NIR illumination to support high-pressure missions day or night. For search and rescue, firefighting, security, powerline work, wildlife monitoring, and emergency response, the H30T is the stronger choice when hidden heat matters.

Why it makes sense

Choose the H30T when normal cameras are not enough. It gives your team visual detail and thermal intelligence in one serious payload.

• High-resolution thermal imaging.
• Powerful zoom and wide view.
• Built for day and night missions.
• Strong for emergency response.

Important to know

• Five-sensor power in one payload
  The H30T combines wide, zoom, thermal, laser rangefinding, and NIR illumination, giving operators a complete aerial view for complex missions.
• See heat when the eye cannot
  The H30T adds a 1280 × 1024 thermal camera at 30 fps, helping teams find people, animals, hotspots, overheating equipment, and hidden risks.
• Inspect far without moving dangerously close
  With 34× hybrid optical zoom and 400× max zoom, operators can check distant targets while keeping the aircraft at a safer distance.
• Measure and locate targets faster
  The 3–3000 m laser rangefinder helps teams understand where something is, how far away it is, and how to direct ground crews more accurately.
• Built for demanding field missions
  With IP54 protection, -20°C to 50°C operating range, Night Scene mode, and NIR support, the H30T is made for real-world response, inspection, and security work.

Specs

• Weight: 920 ± 5 g
• Power: 28 W
• Ingress protection: IP54
• Operating temperature: -20°C to 50°C
• Zoom camera: 1/1.8-inch CMOS, 40 MP
• Wide camera: 1/1.3-inch CMOS, 48 MP
• Thermal camera: 1280 × 1024 at 30 fps
• Thermal zoom: 32× digital zoom equivalent
• Laser rangefinder: 3 m to 3,000 m
• Supported aircraft: Matrice 400 with DJI RC Plus
