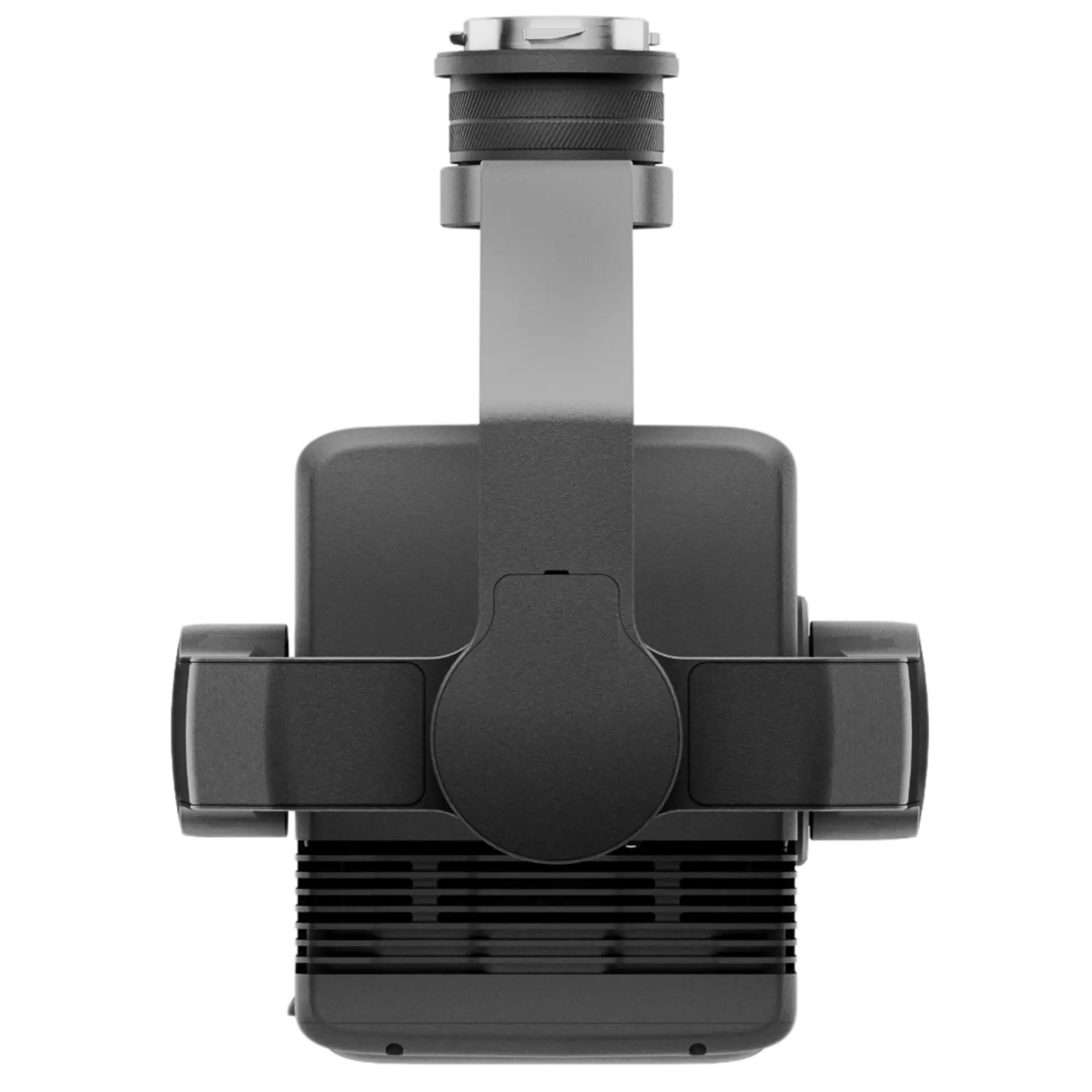

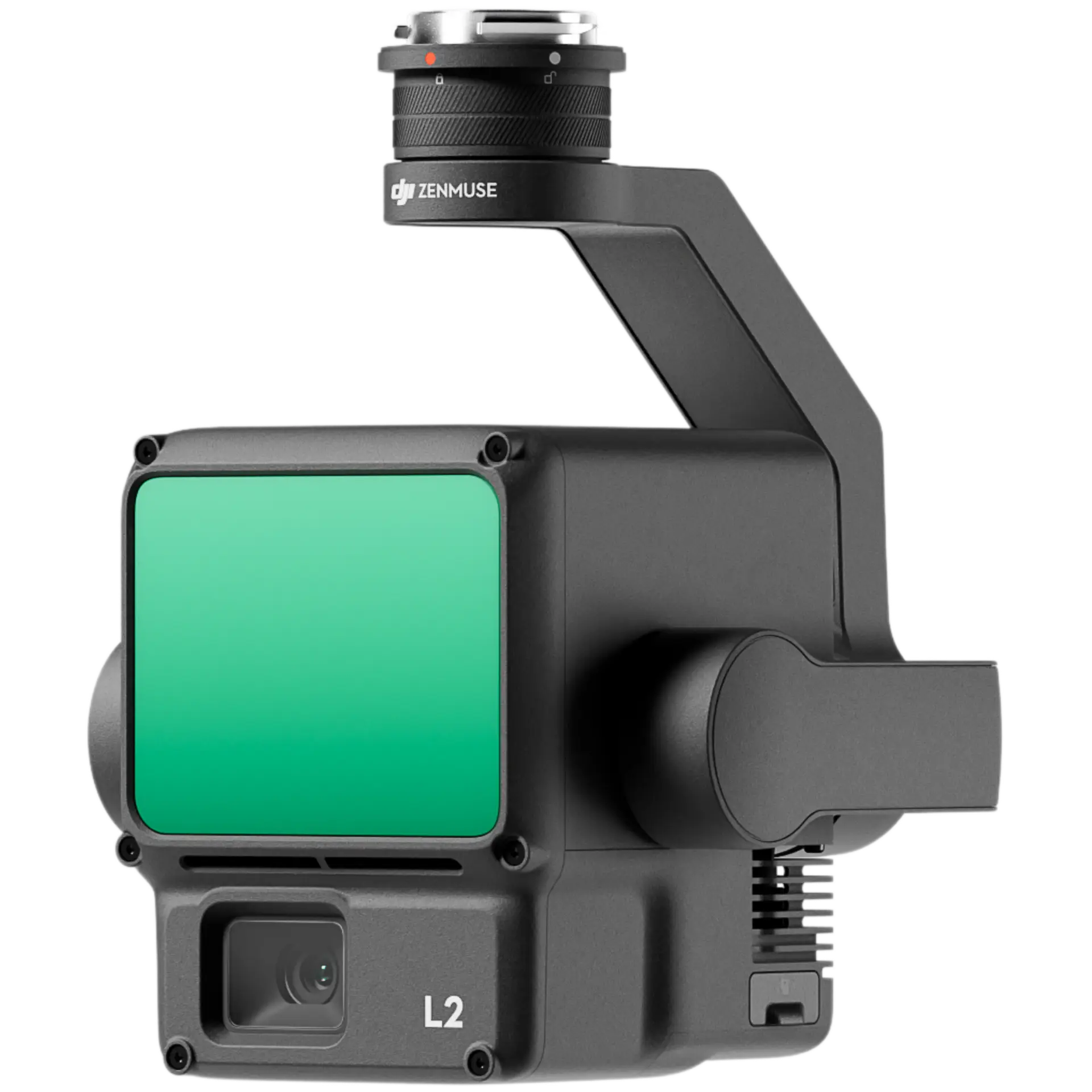

Zenmuse L2

Description

The DJI Zenmuse L2 is a high-precision LiDAR payload built for teams that need accurate 3D data, not just aerial photos. Combining LiDAR, a 4/3 CMOS RGB mapping camera, and DJI’s positioning system, it captures detailed terrain, structure, and asset information from the air. For surveying, powerline work, forestry, mining, and construction, the L2 turns complex sites into usable data.

Why it makes sense

Choose the Zenmuse L2 when you need to measure, map, and model areas with serious accuracy. It is built for jobs where normal images are not enough.

• Accurate 3D site data.
• Strong for mapping.
• Useful through vegetation.
• Built for serious survey work.

Important to know

• Turn sites into 3D data
  The L2 captures detailed LiDAR point clouds, helping teams measure land, structures, slopes, stockpiles, and hard-to-reach areas with confidence.
• Built for demanding fieldwork
  With IP54 protection and a -20°C to 50°C operating range, the L2 is made for real outdoor survey and inspection environments.
• Capture more detail, faster
  With up to 1,200,000 points per second in multiple-return mode, the L2 collects dense site data for more complete 3D modelling.
• See beyond surface-level images
  LiDAR helps capture terrain and structure data where standard camera mapping can struggle, especially around vegetation, lines, slopes, and uneven ground.
• Combine LiDAR with clean visual detail
  The 20 MP 4/3 CMOS RGB camera adds colour and visual context to the data, making outputs easier to understand and use.

Specs

• Weight: 905 ± 5 g.
• Ingress protection: IP54.
• Operating temperature: -20°C to 50°C.
• Detection range: Up to 500 m maximum.
• Point cloud rate: Up to 1,200,000 pts/s.
• System accuracy: 5 cm horizontal / 4 cm vertical at 150 m under DJI test conditions.
• RGB mapping camera: 4/3 CMOS, 20 MP.
• Laser safety: Class 1, IEC 60825-1:2014.
• Supported aircraft: Matrice 400 with DJI RC Plus.

Works best with

• Best paired with Matrice 400
• Choose the full setup around the mission, not around one isolated item.
