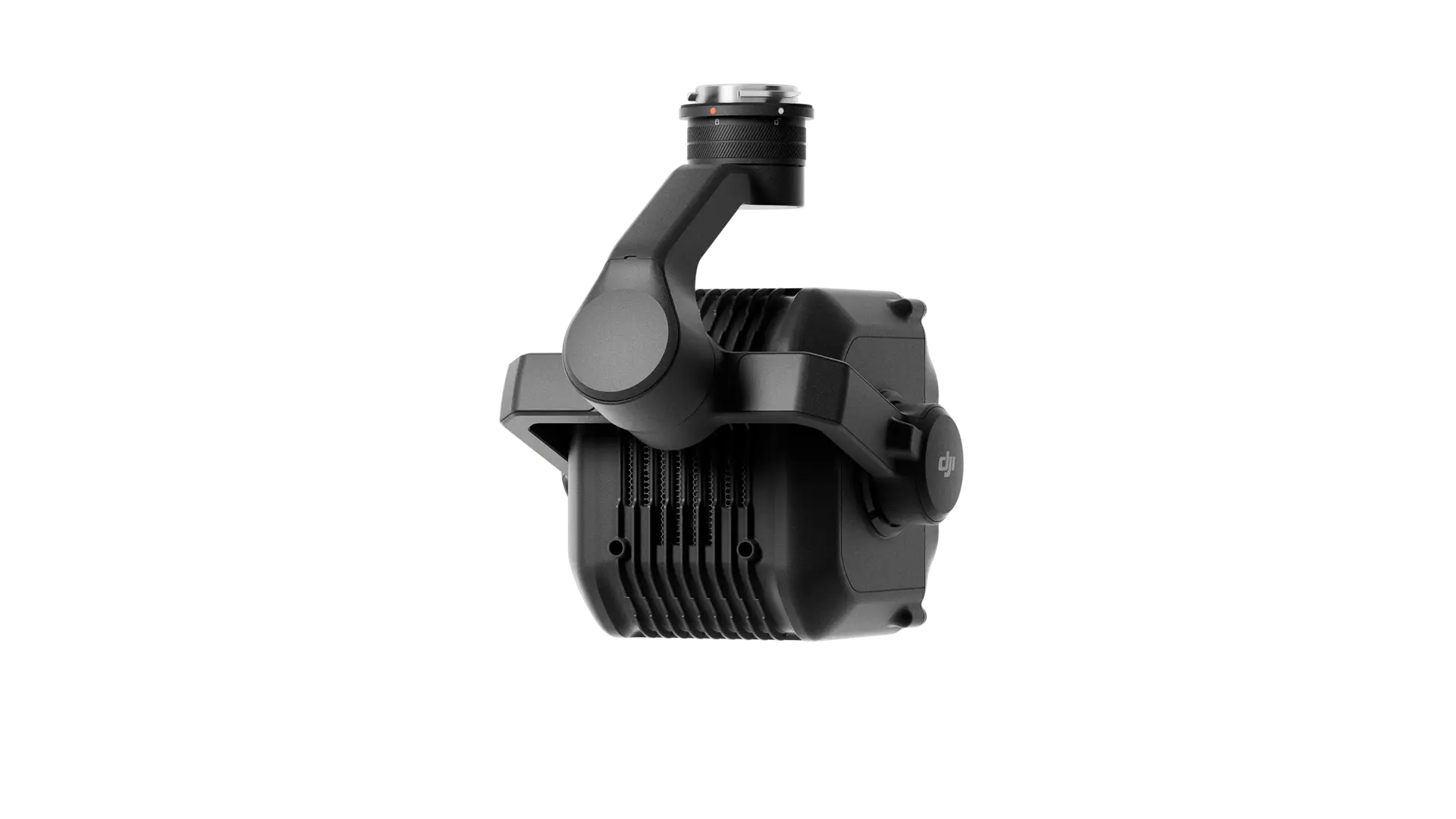

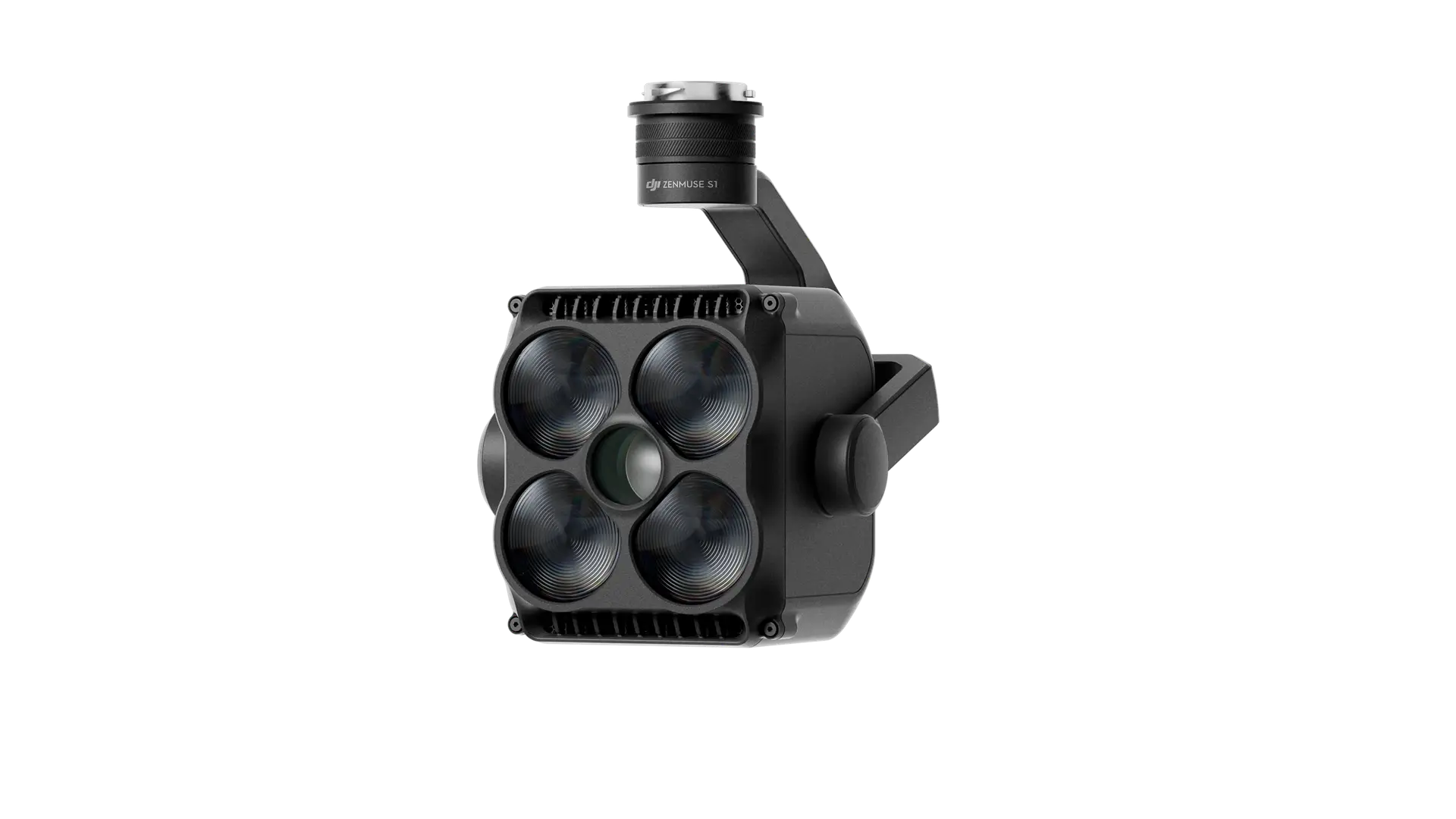

Zenmuse S1

Description

The DJI Zenmuse S1 is a powerful spotlight payload built to bring visibility into dark, high-risk, or hard-to-reach areas. Using LEP lighting technology and multiple beam modes, it helps teams search, inspect, patrol, and respond when normal visibility is not enough. For public safety, security, emergency response, and night inspections, the S1 gives your drone serious working power after dark.

Why this makes sense

Choose the Zenmuse S1 when your team needs to light up an area from the air without putting people in first. It is made for night work, search operations, and safer visibility on demanding sites.

• Powerful aerial spotlight.
• Built for night operations.
• Strong search support.
• Ideal with H30 Series.

Important to know

• Light up the mission area
  With up to 500 m effective illumination distance, the S1 gives operators better visibility across dark fields, sites, roads, structures, and search zones.
• Switch beams for the job
  Low Beam, High Beam, and Both On modes let teams use wider light for area checks or tighter light for focused inspection work.
• Built for real night work
  With IP54 protection and a -20°C to 40°C operating range, the S1 is made for field operations after dark, not just controlled environments.
• Pairs powerfully with camera payloads
  When used with the H30 Series on the Matrice 400, intelligent beam alignment helps keep the spotlight aimed with the camera view.
• Made for emergency response
  DJI positions the S1 for public safety, emergency rescue, inspections, and other night operations where visibility can change the outcome.

Specs

• Weight: 760 ± 10 g.
• Ingress protection: IP54.
• Operating temperature: -20°C to 40°C.
• Rated power: 120 W on Matrice 400
• Max central illuminance: 40 lux @ 100 m on Matrice 400, Both On mode.
• Effective illumination distance: Up to 500 m.
• Lighting modes: Low Beam, High Beam, Both On.
• Gimbal: 3-axis stabilized.
• Eye safety class: IEC 62471 Risk Group 1.
• Supported aircraft: Matrice 400 with DJI RC Plus.

Works best with

• Best paired with Matrice 400
• Choose the full setup around the mission, not around one isolated item.

Compatible products, payloads, and accessories.

Build the right system around the aircraft with matching sensors, power options, and mission accessories.

Need pricing, availability, or the right setup? Open the quote form and we will get back to you with a tailored quote.
